Hurricane-Resistant Marina Design: Engineering Beyond Peak Gust Speeds

Floating dock hurricane design in the Bahamas and Caribbean requires more than designing for 170 mph gusts.

In regions such as the Bahamas, the Caribbean Basin, South Florida, and the mid-Atlantic hurricane corridors, marina construction conversations often collapse into one headline number:

“Designed for 170 mph gusts.”

That phrase has marketing appeal, yet offers limited analytical value within performance-based hurricane marina engineering. Structural failure in hurricanes is not a matter of surviving a gust. It is a matter of absorbing sustained energy, mitigating cyclic fatigue, and maintaining functionality after compound wave and surge events.

At MAADI Group, we engineer hurricane-resistant floating dock systems through performance-based coastal methodology — integrating wind mechanics, hydrodynamics, probability, and connection science. The goal is not defensive overdesign but predictable, insurable performance through defined design logic.

The Fundamental Misconception — Gust Speed vs. Structural Energy

The Saffir–Simpson Hurricane Wind Scale used by NOAA classifies storms by their one-minute sustained wind speeds. ASCE 7, in contrast, specifies structural design based on three-second gusts.

A 170 mph gust may correspond to a sustained speed of roughly 140 mph — a 18 % reduction in mean velocity but nearly a 45 % reduction in kinetic energy flux. This single conversion shows why gust speed alone cannot define resilience. Structural loads (floating dock frames, piles, anchoring systems, and connections) are proportional to V². Wave growth and hydrodynamic energy are even more sensitive, scaling approximately with V³. Therefore, a gust is not equivalent to sustained wind when evaluating real structural damage. Hurricane-resistant floating dock systems should be designed using wind and environmental loading criteria consistent with ASCE 7, adapted to coastal Exposure Category D conditions.

A 170 mph gust produces 74 psf for only 3 seconds.

A sustained 140 mph wind accumulates 50 psf over 60 seconds — 13.6x more total mechanical energy.

• Gust energy     = 74.0 psf × 3 s   = 222 psf⋅s
• Sustained energy = 50.2 psf × 60 s = 3,012 psf⋅s
• Energy ratio          = 3,012 / 222 = 13.6x

This sustained energy accumulation drives progressive fatigue in welds, bolts, and connections — not isolated gust peaks.

Hydrodynamic amplification—from waves, storm surge, and vortex shedding—responds to time-averaged energy flux, not brief impulses. Structural fatigue, bolt slippage, inter-module connector wear, and pile-mooring impacts on docks all result from repeated energy cycles, not isolated peak gusts.

In hurricane exposure:

• The duration of sustained wind correlates with fetch length and wave spectrum shift.
• The sequence of directional changes drives cumulative fatigue.
• The phase lag between wind peak and surge crest defines compound load amplification.

Hurricane loading therefore involves energy growth and phase coupling — a complex dynamic regime far beyond the static “peak gust” simplification.

Sustained Wind, Fetch, and Wave Growth

In deep open water, significant wave height Hs is typically estimated using SWAN spectral wave modeling or NOAA hindcast datasets. These methods account for sustained wind velocity Vs, fetch length F, storm duration, and local bathymetry—particularly under Exposure Category D conditions (open sea or coastal terrain with minimal surface roughness).

As sustained wind velocity increases and fetch length expands, wave energy accumulates rapidly. Longer wind duration allows the wave spectrum to shift toward larger significant wave heights Hs and longer peak wave periods Tp.

In practical hurricane conditions:

• Sustained winds of 120–150 mph (193–241 km/h) over a fetch exceeding 12 miles (20 km) can generate significant wave heights exceeding 15–25 ft (4.5–7.5 m), depending on bathymetry. The total energy contained within the wave system often surpasses the direct wind kinetic energy acting on the floating dock freeboard area by a factor of 5 to 10 times. This is why sustained wind duration and fetch length govern structural damage potential far more than short-duration peak gusts.
• Peak wave periods typically range from 8–12 seconds, and may exceed 14 seconds in fully developed conditions.

Under Exposure Category D—open ocean or unobstructed coastal water—energy buildup is virtually unhindered, allowing wave systems to approach full development potential.

Key Consequences for Marina Infrastructure

• Elevated subsurface orbital velocities increase hydrodynamic forces on piles, resulting in higher bending moments and shear demand within pile foundations.
• Extended wave periods (typically 8–12 seconds in hurricane events) produce sustained cyclic loading in structural welded joints and bolted connection interfaces. Repeated vertical and lateral floating dock motions around fixed piles intensify pile-guide interaction and amplify bending stresses in pile foundations.
• Wave breaking on floating dock systems can generate transient impact coefficients Ci>2.0 (dynamic impact coefficient accounting for wave velocity and deceleration effects compared to equivalent static hydrostatic pressure) effectively doubling localized structural load effects and increasing connection stress concentrations.

In hurricane-exposed marinas, wave-induced loading typically dominates fatigue demand.

Exposure Category D vs. Hurricane Category — Two Separate Axes

Confusing ASCE 7 Exposure Categories with hurricane intensities creates major design misinterpretations.

• Exposure Category D: Open terrain with unobstructed wind over water or flat land, z_0 (roughness length) < 0.003 m.
• Hurricane Category 4: Meteorological classification based on sustained winds 130–156 mph per NOAA.

Exposure defines the multiplier applied to velocity pressure; hurricane category defines the input velocity. They are orthogonal parameters. Every hurricane site near open water is Category D regardless of storm strength.

In short: Category 4 is a storm description; Category D is a terrain parameter. The former drives design wind; the latter modifies surface pressure coefficients.

Source: NOAA Saffir–Simpson Hurricane Wind Scale (one-minute sustained wind at 10 m).

Source: ASCE 7-22, Minimum Design Loads and Associated Criteria for Buildings and Other Structures, Chapter 26 (Wind Loads).

Exposure Category D in ASCE 7 designates the most severe wind exposure condition, characterized by terrain that offers virtually no aerodynamic resistance to wind flow. For insurable marina infrastructure: Open-water sites automatically qualify as Exposure D, driving conservative pile, mooring, and connection design.

Pressure Scaling — The Square Law Effect

Wind pressure q increases with the square of velocity:

ASCE 7 marina wind design:

qz​=0.00256kz​Kzt​Kd​V2

where:

• qz= velocity pressure at height z (psf)
• V= basic wind speed (mph)
• Kz= exposure coefficient (accounts for terrain roughness and height above ground or water)
• Kzt= topographic factor (accounts for wind speed-up over hills, escarpments, or ridges)
• Kd= wind directionality factor (accounts for reduced probability that maximum wind acts simultaneously in the most unfavorable direction)

A modest increase in design wind drastically multiplies load demand:

Tripling mass or cost for a statistically extreme event has limited marginal benefit. Performance-based cost optimization instead selects a wind velocity consistent with probabilistic exposure and lifecycle economics.

Return Periods and Annual Probability

Engineers and financiers alike often misunderstand return periods. A “700-year hurricane” does not occur “once every 700 years” — it has a 0.14 % annual chance of being exceeded.

For a 50-year project lifespan, the probability of experiencing an event equal to or greater than a 700-year event is:

P = 1 − (1 − 1/700)⁵⁰

≈ 6.9% probability over a 50-year period.

So, even “rare” events have tangible lifetime probability.

Hurricane Design Levels and Risk Interpretation for Marina Infrastructure

Note: A return period does not mean an event occurs once every N years.
For example, a 700-year hurricane has a 0.14% probability of being equaled or exceeded in any given year, corresponding to approximately 6.9% probability over a 50-year design life.

MAADI Group’s consulting framework evaluates both the probability and financial feasibility. Resilience is an optimization exercise, not a race to the highest number.

Storm Surge — The Geometry Multiplier

Hydrographs from NOAA’s coastal storm modeling show that surge peaks often lag wind maxima by 2–6 hours. This phase delay produces the “compound load” window — when elevated water increases lever arms while residual wind imposes sustained lateral stress.

Pile bending follows the relationship M = F × h.

Therefore, if storm surge increases the lever arm by 4 ft, while the lateral force remains F = 2,000 lb, the bending moment increases by:

ΔM = 2,000 lb × 4 ft = 8,000 ft·lb

When this additional moment is multiplied by the number of piles supporting the floating dock system, the total bending demand transmitted to the structural frame can reach several thousand kip·ft, significantly increasing structural stress during extreme storm events.

ShockGUARD™: Controlling Dynamic Loads in Hurricane-Resistant Marinas

During hurricanes, floating docks are subjected to powerful wave energy, storm surge, and repeated impacts against pile guides. The kinetic energy of moving docks (½ mv²) can generate severe impact forces and dynamic amplification far exceeding static design loads. As surge height increases, the lever arm in M = F × h grows, significantly increasing pile bending moments. ShockGUARD™ energy-dissipating dampers absorb part of this kinetic energy and slow floating dock deceleration during impact. The result is reduced peak loads, lower fatigue demand, and greater resilience for floating dock systems during extreme storm events.

Dynamic Interaction Between Vessels, Moorings, and Marina Structures

If vessels remain moored during storm conditions, the marina behaves as a coupled dynamic system involving pile stiffness, mooring line stiffness, and vessel mass. This interaction can be approximated using a mass–spring–damper model:

m ẍ + c ẋ + kx = F(t)

where:
m = vessel mass
k = equivalent mooring stiffness
c = hydrodynamic and structural damping
F(t) = external forcing from storm surge and wave action

Under certain conditions, resonant amplification may occur when the forcing period approaches the system’s natural period, typically on the order of 10–25 seconds for moored vessels and floating dock systems. This resonance can significantly increase vessel motions, mooring loads, and impact forces transmitted to piles and dock structures.

Engineering calculations for a 20 m yacht exposed to Category 5 hurricane winds (≈70 m/s), using a drag coefficient Cd ≈ 1.2 and a lateral wind profile of approximately 86 m² as documented by Tobiasson (1999), indicate that mooring line tensions can exceed 100 kN per primary line (≈22,000 lb).

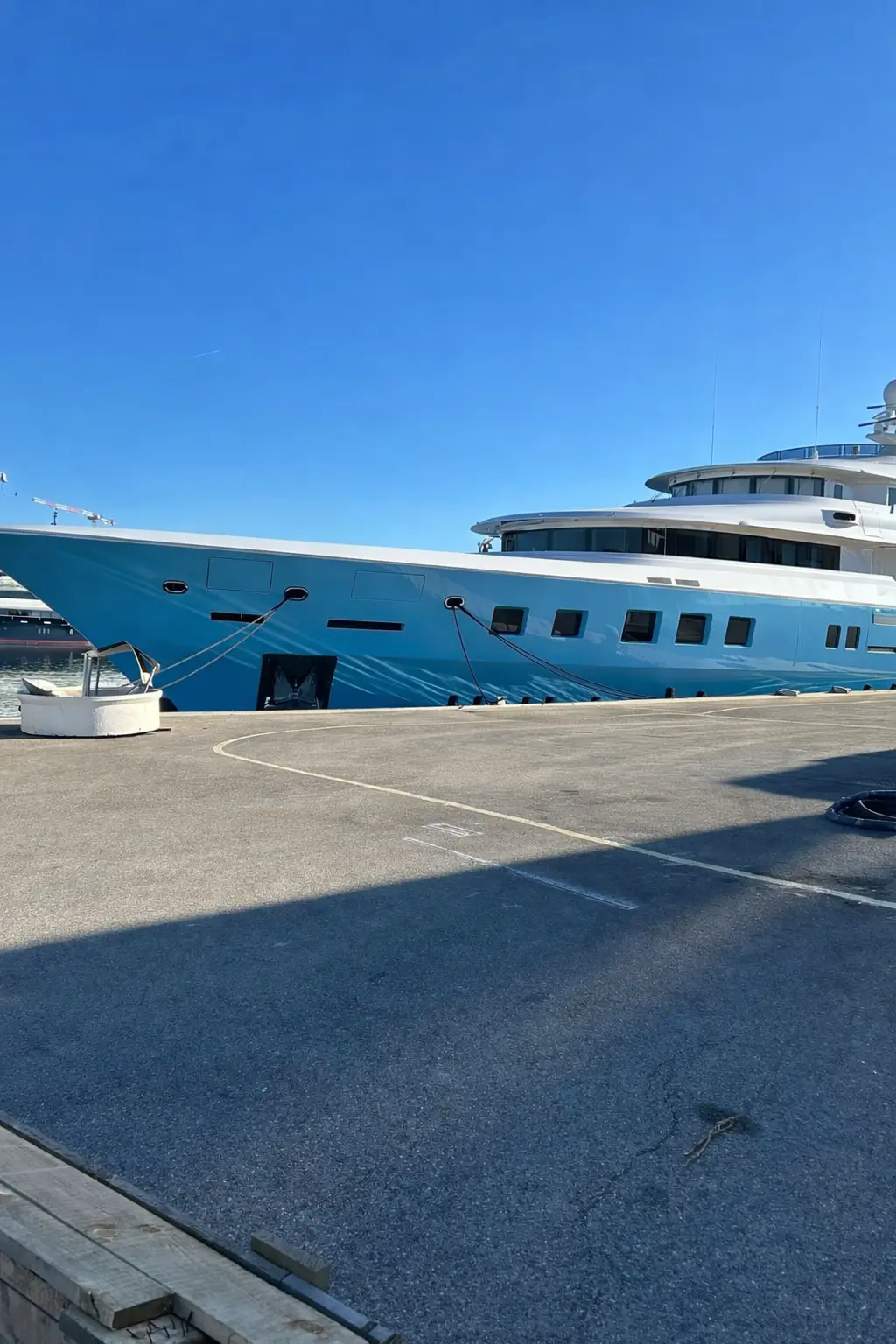

Under realistic mooring geometries with ±30° line orientations relative to the vessel centerline, the effective tension increases due to vector components, leading to total line forces on the order of 150 kN distributed across four primary mooring lines.

For comparison, many commercial marina cleats designed for recreational vessels are rated below 12,000 lb (≈53 kN) in uplift resistance, highlighting the large disparity between extreme storm loads and typical marina hardware capacity.

These conditions explain why hurricane preparedness protocols in many coastal regions prioritize vessel evacuation prior to major storms. From an engineering perspective, resilient marina design must therefore focus on structural hierarchy and energy management, rather than relying solely on reactive reinforcement of individual components.

Connection Performance — Where Failure Begins

Post-hurricane forensic data from ASCE Wind Performance Database and Florida DEP Assessments identify repeating failure patterns:

1. Cleats tearing through thin deck plates.
2. Bolt pull-out from corroded anchors.
3. Pile guide rollers breaking, causing lifts off piles.
4. Hinge brackets snapping at weld toes due to low fatigue life.

At MAADI Group, structural connection design follows a rigorous five-step engineering verification process to ensure reliability and long-term performance in demanding marine environments:

• Combined load verification: Shear, tension, and bending forces are evaluated using unified interaction equations (V/V_allow + T/T_allow ≤ 1) to verify that connections remain within allowable limits under combined loading conditions.
• Fatigue resistance: Connections are verified for enhanced fatigue performance, maintaining equivalent stress ranges below 35% of the material yield strength to ensure long-term durability under cyclic marine loading.
• Redundant load paths: Critical connections incorporate carefully engineered structural details designed by our in-house Professional Engineers (P.Eng.), providing redundant load paths and increased structural reliability.
• Marine-grade materials: Floating dock infrastructure components are fabricated using high-performance marine materials, including ring-reinforced EPDM engineered flexible connectors, 5000 and 6000-series marine aluminum alloys, and stainless steel hardware. Clear-anodized gangways and corrosion-protected fasteners further enhance durability in aggressive marine environments.
• Advanced engineering validation: Structural assemblies are validated using ADM (Aluminum Design Manual) and CSA S157 aluminum design standards, ensuring that stress levels remain within acceptable limits while maintaining long-term structural performance.

Ultimately, structural resilience is achieved through intelligent connection engineering—not simply by increasing beam size.

Why Aluminum Outperforms Concrete in Dynamic Coastal Environments

A common misconception in waterfront infrastructure is that greater mass automatically means greater strength. In dynamic coastal environments, however, structural mass can actually increase inertial forces, as described by the relationship:

Fᵢ = m × a

This means that a structure twice as heavy generates roughly twice the inertial demand on anchors and pile connections when subjected to the same deceleration during wave action, storm surge, or vessel impacts.

Engineered marine-grade aluminum structures follow a different design philosophy based on controlled flexibility and energy management rather than rigid mass:

• Energy dissipation through controlled flexibility: The lower modulus of elasticity of aluminum allows limited displacement, helping absorb dynamic loads from waves, surge, and vessel movements.
  • Reduced loads on piles and connections: Lighter structural weight significantly decreases dead load and reduces stresses transmitted to foundations and pile guides.
  • Rapid modular recovery after storms: Modular aluminum components can be efficiently repaired, replaced, or reconfigured following extreme weather events.

Operational experience from aluminum flatbeds, floating dock systems, and modular marine structures shows that these systems can recover their full elastic shape after cyclic deflections of 2–3 inches, a behavior rarely achievable with rigid concrete structures.

Ultimately, true resilience in coastal infrastructure comes from elastic adaptability—not brittle resistance.

Engineering for Recovery, Not Only Resistance

True marina resilience is not defined only by the ability to resist extreme storms—it is also measured by how quickly infrastructure can recover and return to operation after a severe event.

In many waterfront facilities, the difference between total structural loss and rapid restoration lies in modular design. Systems engineered for recovery allow damaged components to be replaced without rebuilding the entire marina infrastructure.

Modern aluminum floating dock systems enable this operational resilience through:

• Sectional isolation using engineered flexible joints that prevent damage propagation.
• Rapid re-float and realignment of dock sections following storm surge displacement.
• Salvage and recovery without demolition, minimizing reconstruction costs.
• Replaceable structural components, including our patented MakeABridge® modular gangway systems.

This level of recoverability directly influences business continuity for marinas, resorts, and waterfront developments. Structural resistance alone is not sufficient—true resilience requires both resistance and rapid recovery.

Strategic Perspective — From Risk to Intelligent Design

Designing hurricane-resistant marinas should not be reduced to a competition of wind speeds or structural mass. Instead, it requires a coherent engineering philosophy based on quantified risk, verified structural behavior, and controlled flexibility.

Every MAADI Group marina infrastructure system is developed using a structured engineering framework that includes:

• Defined return-period and exposure criteria, aligned with ASCE 7 and NOAA coastal hazard data.
• Explicit fatigue validation of structural connections to address cyclic storm loading.
• Documented storm surge and vessel interaction modeling.
• Lifecycle monitoring strategies and engineering traceability for insurers and stakeholders.
• Balanced structural reliability and economic efficiency for long-term marina operation.

Our approach shifts the discussion from fear-driven overdesign to data-driven confidence.

When properly engineered, marina resilience is not the result of excessive mass or rigid structures—it is the outcome of intelligent design, verified engineering, and forward-looking infrastructure planning.

References

• ASCE 7-22, Minimum Design Loads and Associated Criteria for Buildings and Other Structures, American Society of Civil Engineers, Reston, VA, 2022.
• NOAA (2024), Hurricane Wind Scale and Coastal Inundation Modeling, National Oceanic and Atmospheric Administration.
• Gibbs, W., & Vickery, P. (2003), Caribbean Wind Hazard Study, Caribbean Development Bank.
• ASCE Wind Performance Database, Florida Building Commission, Technical Reports 2019–2024.
• ADCIRC Coastal Surge Modeling Suite, Version 57.
• Dunham, J. W., & Finn, A. A. (1974)
  Small-Craft Harbors: Design, Construction, and Operation.
  U.S. Army Coastal Engineering Research Center, Special Report No. 2,
  Fort Belvoir, Virginia.

• Tobiasson, B. O. (2000)
  Marinas and Small Craft Harbors.
  American Society of Civil Engineers (ASCE), Reston, VA.

Additional Coastal Engineering References

• USACE (2008)
  Coastal Engineering Manual (CEM).
  U.S. Army Corps of Engineers, Engineer Manual EM 1110-2-1100.

• PIANC (2014)
  Harbour Approach Channels Design Guidelines.
  World Association for Waterborne Transport Infrastructure.

• FEMA (2020)
  Guidelines for Design and Construction of Coastal Structures.
  Federal Emergency Management Agency.
