Versatile aluminum shore gangways for seamless ship access
Our aluminum shore gangways are engineered for safety and performance, in compliance with ISO 7061 and BS MA 78 standards. Designed to accommodate tidal variations, ship surge and sway, and elevation changes between the pier and vessel deck, it is ideal for port authorities, customs, pilots, and transportation officials. Lightweight yet durable, these aluminum gangways can be permanently installed on piers or carried on board for use by crew to ensure safe ship-to-shore or ship-to-ship access, depending on their size and application.

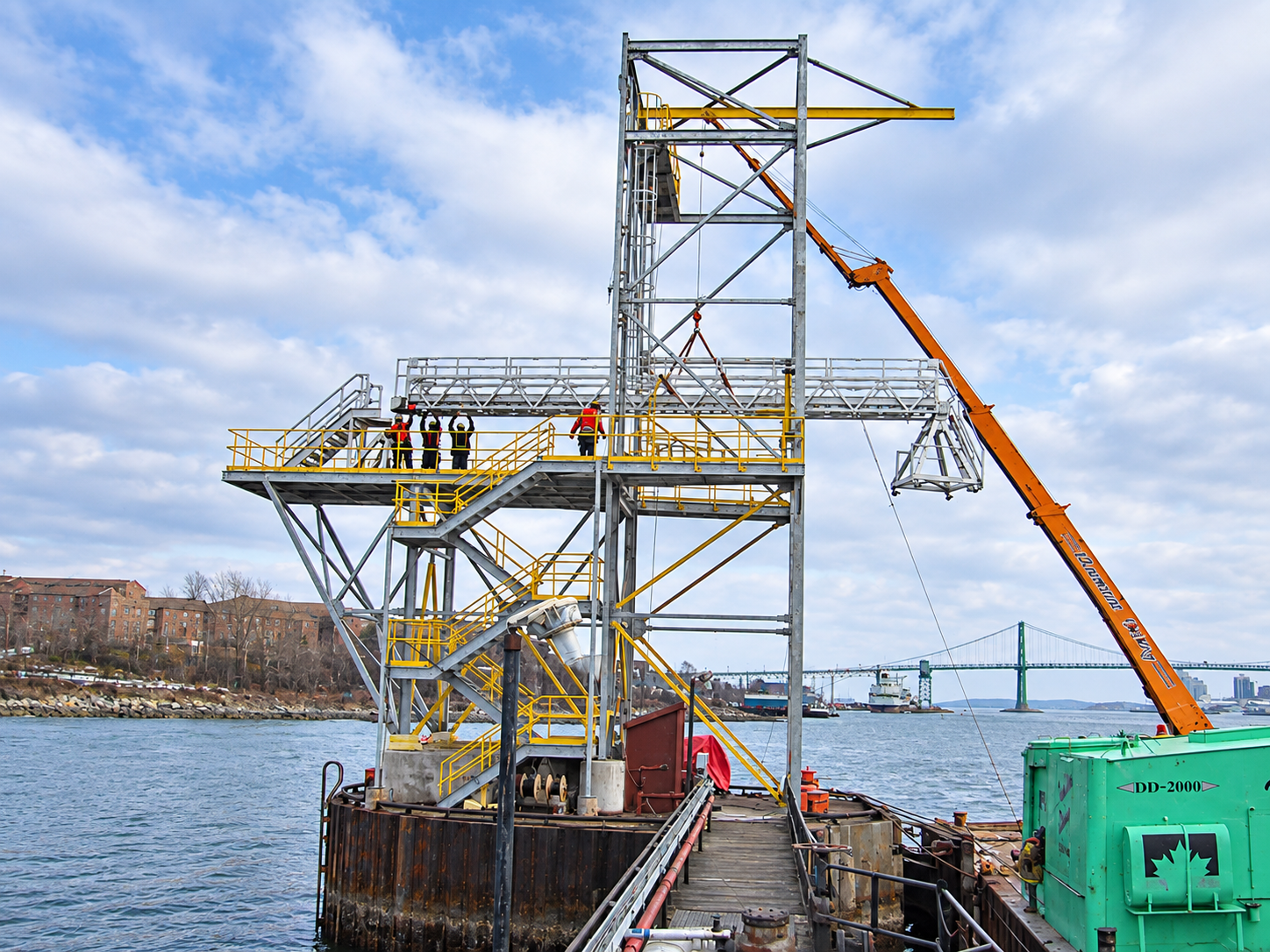

MAADI Group specializes in assessing each environment to recommend the most effective solution—whether it involves a steel tower, tripods, trolleys, self-leveling steps, or a custom combination.
- Type A models are designed for inclines up to 30°
- Type B models feature integrated steps for inclines between 30° and 55°
Each aluminum shore gangway comes with a Professional Engineer (PE) certificate of compliance and is load-tested to 1.25 times the design live load, ensuring safe, reliable operation and ease of handling.

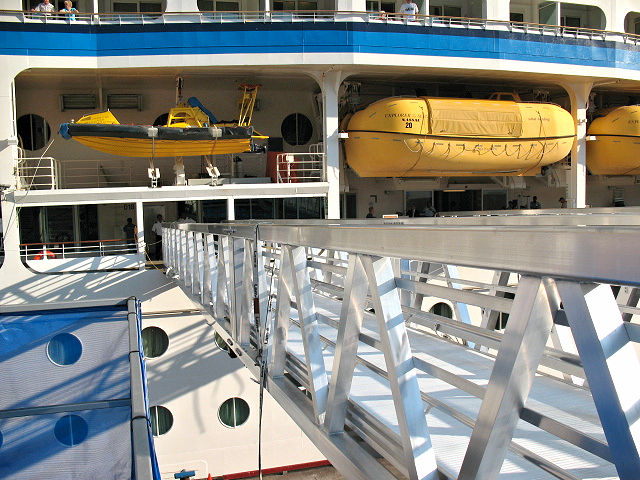

Terminals, ferries and cruise ships
If you’re a port authority or marine contractor looking for a reliable and recognized partner to support you with certified engineering and code-compliant fabrication, MAADI Group delivers high-performance solutions for:
- Cruise ship gangways
- Ferry terminal gangways
- Commercial marine boarding systems
We specialize in designing and manufacturing aluminum gangways using one of the most suitable materials for marine environments:
Lightweight, corrosion-resistant aluminum with a high strength-to-weight ratio — ideal for long-term performance in harsh coastal conditions.
Aluminum pilot gangways
We provide custom-engineered aluminum gangways that deliver safe, reliable, and efficient pilot access, even in extreme weather and fluctuating tidal conditions.
Our custom-engineered gangways can include:
- Self-adjusting steps for steep inclines
- Integrated hoisting equipment for easy stowage and deployment
- Lightweight aluminum construction for easier handling and rigging
With their corrosion resistance, high strength-to-weight ratio, and long-term durability, our aluminum gangways offer a superior alternative to traditional steel or wood systems—without compromising safety or performance.

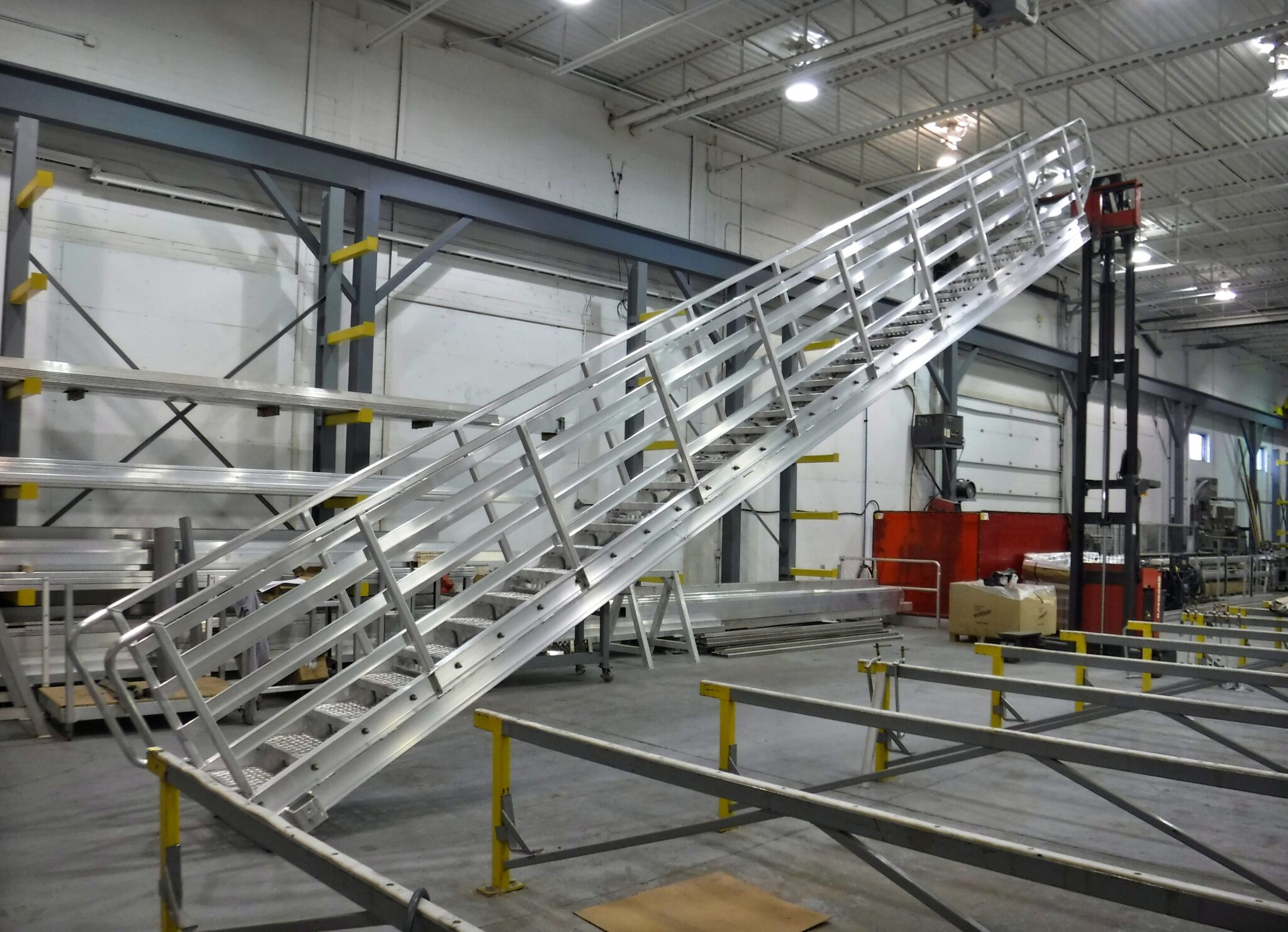

Engineering and aluminum welding
Our capabilities include:
- Custom-designed aluminum extrusions, optimized through detailed stress analysis
- Development of Welding Procedure Specifications (WPSs) tailored specifically for aluminum
- In-house aluminum fabrication using advanced CNC cutting, forming, and automated welding systems
- Code-compliant structural design, aligned with international standards such as CSA, AWS, and Eurocode
We combine engineering precision with hands-on expertise—using the right balance of technology and skilled craftsmanship to create marine-grade, load-bearing aluminum structures that are strong, lightweight, corrosion-resistant, and built to last.
Why Aluminum
Tailored design
Our aluminum shore gangway are engineered for safety and performance, in compliance with ISO 7061 and BS MA 78 standards.
Transition plates
Guardrails
Connection
Decking materials
Handrails
Lighting system
Kick plates
Flat transition plate
Diamond treads
A flat aluminum plate with anti-slip diamond treads comes standard with the roller and rail system and features a frictionless edge to protect decking surface.
Download Custom Gangways brochure
Flat transition plate
Anti-slip strips
A flat aluminum plate with anti-slip extruded strips can be used with the roller and rail system and is available upon request.
Download Custom Gangways brochure
Flat transition plate
Anti-slip coating
A flat aluminum plate with anti-slip durable polyester powder coating can be used with the roller and rail system and is available upon request. Compliant with AAMA 2604-10 & ASTM D3359.
Download Custom Gangways brochure
Curved transition plate
Diamond treads
A curved aluminum plate with anti-slip diamond treads comes standard with the roller and plate system and features a frictionless edge to protect decking surface.
Download Custom Gangways brochure
Curved transition plate
Anti-slip strips
A curved aluminum plate with anti-slip extruded strips can be used with the roller and plate system and is available upon request.
Download Custom Gangways brochure
Curved transition plate
Anti-slip coating
A curved aluminum plate with anti-slip durable polyester powder coating can be used with the roller and plate system and is available upon request. Compliant with AAMA 2604-10 & ASTM D3359.
Download Custom Gangways brochure
Guardrails with midrails
Standard 42″ guardrails
Our natural-finish aluminum guardrails are compliant with U.S. and Canadian bridge codes and standards and feature 2″ (50 mm) midrails installed at mid-height.
Download Custom Gangways brochure
Guardrails with midrails
Custom design
Personalize your guardrails with your own design.
Download Custom Gangways brochure
Structure connection
Roller and plate system
This system allows lateral and vertical movement and is usually needed to link a chain-anchored floating dock to land.
Download Custom Gangways brochure
Structure connection
Flexible connector
This connector allows small vertical movement and is usually required to link a pile-anchored floating dock to the land.
Download Custom Gangways brochure
Structure connection
Roller and rail system
This easy-to-install system is usually used in conjunction with the roller and plate system or flexible connector on the land side. Rails are made of aluminum and wheels are made of UHMW.
Download Custom Gangways brochure
Durable decking materials
Ipe hardwood
- Naturally very resistant to decay, rot and insect attack
- Minimum 40-year lifespan depending on use
- Low maintenance, no treating or sealing required for durability
- Other hardwood options such as ribbed cumaru are available upon request
Durable decking materials
Composite
- Designed to resist rot, warping, and fading
- Minimum 25-year lifespan depending on use
- Anti-slip ribbed surface
- Low maintenance, no treating or sealing required for durability
Durable decking materials
Ribbed aluminum
- Unlimited lifespan with regular cleaning
- High grip ribbed tongue and groove planks
- Maintenance-free – no treatments or sealers required
Handrails
Optional natural-finish aluminum handrails with 2″ (50 mm) hand clearance. Double handrails also available upon request.
Download Custom Gangways brochure
LED lighting system
Optional built-in white LED lighting system, white or RGB programmable LED light projector system, or handrail-integrated lighting system.
Download Custom Gangways brochure
Integrated kick plates
Optional natural-finish aluminum kick plates help prevent objects from falling and add a higher level of security.
Download Custom Gangways brochure Raised kick plates
Optional kick plates available in Ipe hardwood, wood composite, extruded aluminum alloy, and other types of wood upon request. Compliant with the Americans with Disabilities Act.
Download Custom Gangways brochureExpertise you can count on for shore gangways
Speedy turnaround
We manufacture our aluminum docks and gangways right in our Canadian plant, eliminating the need to work with a separate supplier. Plus, our large inventory on hand prevents supply chain delays.
Experienced engineers
In addition to the hundreds of structural extruded aluminum projects we’ve designed and built, we also have numerous awards under our belt. This includes the Extrusion Technology Foundation’s Design Competition Award in the structural category, which we won a 3rd time in 2022.
Built to code
All of our design specifications meet local, regional, and national building codes and professional standards as required. All of our technical designs and calculations for our aluminum marine structures bear the seal of one of our professional engineers.
Guaranteed quality
Backed by 15-year limited warranty on aluminum against material failure, defects, and corrosion
Sector
Marine Constructions
We’re your partner for a job well done, no matter how much (or how little) of our expertise you need. Our services include full engineering, technical support and manufacturing, planning, and installation.
See our ServicesDocumentation
Want more details? Download our technical information about our products. And feel free to contact us with any questions!
