What Is a Gangway?

A gangway is an access structure, not simply a dock accessory. Unlike a conventional fixed walkway, a marine gangway must accommodate changes in relative elevation resulting from tides, seasonal water-level fluctuations, reservoir drawdown, vessel movement and, depending on the site, storm surge and waves. In a typical floating-dock installation, one end is hinged while the opposite end is allowed to slide or roll as the dock rises and falls.

That movement makes gangway design more complex than simply sizing a pedestrian walkway. Length, slope, operating range, design loads, structural deflection, connection forces, accessibility, transition geometry, corrosion resistance and the reactions imposed on the supporting floating structure all influence the final design.

This guide examines commercial marine gangways from an engineering perspective: how their geometry is established, which structural loads govern their design, how accessibility affects length and slope, how materials are selected, and which structural and detailing decisions influence long-term performance.

How a Gangway Works

A gangway must accommodate relative movement between the two structures it connects while maintaining a safe and continuous access path. In a typical shore-to-floating-dock installation, the shore-side end is hinged to the fixed structure, allowing the gangway to rotate as the water level changes. The floating end is free to travel longitudinally, typically through rollers, a sliding arrangement or, in some configurations, a flexible connection system, allowing the gangway to flatten, steepen and change its horizontal reach without restraining the movement of the dock.

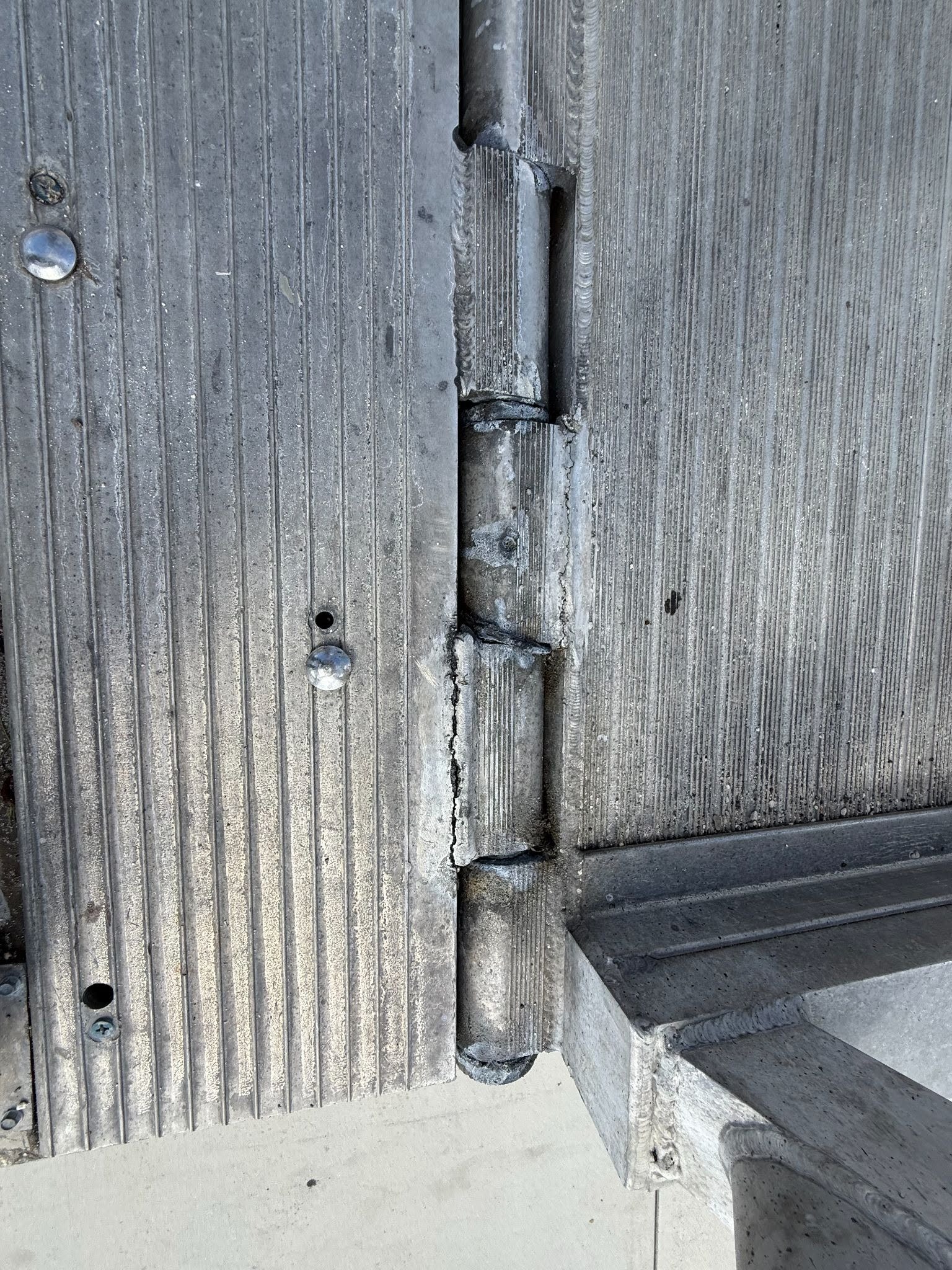

This articulation is what distinguishes a marine gangway from a conventional fixed walkway. As the floating dock rises or falls, the gangway changes both angle and horizontal position. If that required movement is unintentionally restrained, significant forces can develop in the gangway, its connections and the supporting floating structure.

Slope, Tide and Water-Level Range

Gangway geometry is governed primarily by the difference in elevation between its supporting structures and the horizontal distance available to accommodate that difference. For a floating-dock installation, the critical geometry must be evaluated throughout the full operating water-level range—not only at the normal water level.

Low water commonly produces the steepest downward gangway angle from shore to dock, while high water can create the opposite condition and may introduce different transition or clearance constraints. Both extremes therefore need to be checked.

A marina with a 2 ft (0.6 m) water-level range and one with a 12 ft (3.7 m) range may use similar floating docks but require very different gangway geometries. For a given difference in elevation, increasing the gangway's horizontal run reduces its slope. Where space is limited, landing elevations, intermediate platforms or alternative access arrangements may also influence the final design.

The required gangway length is therefore established from the site's design water levels, landing elevations, floating-dock freeboard, available horizontal run and applicable accessibility requirements.

The Connection at Each End

The connections are fundamental to gangway performance because they must transfer structural loads without preventing the movement the gangway is intended to accommodate.

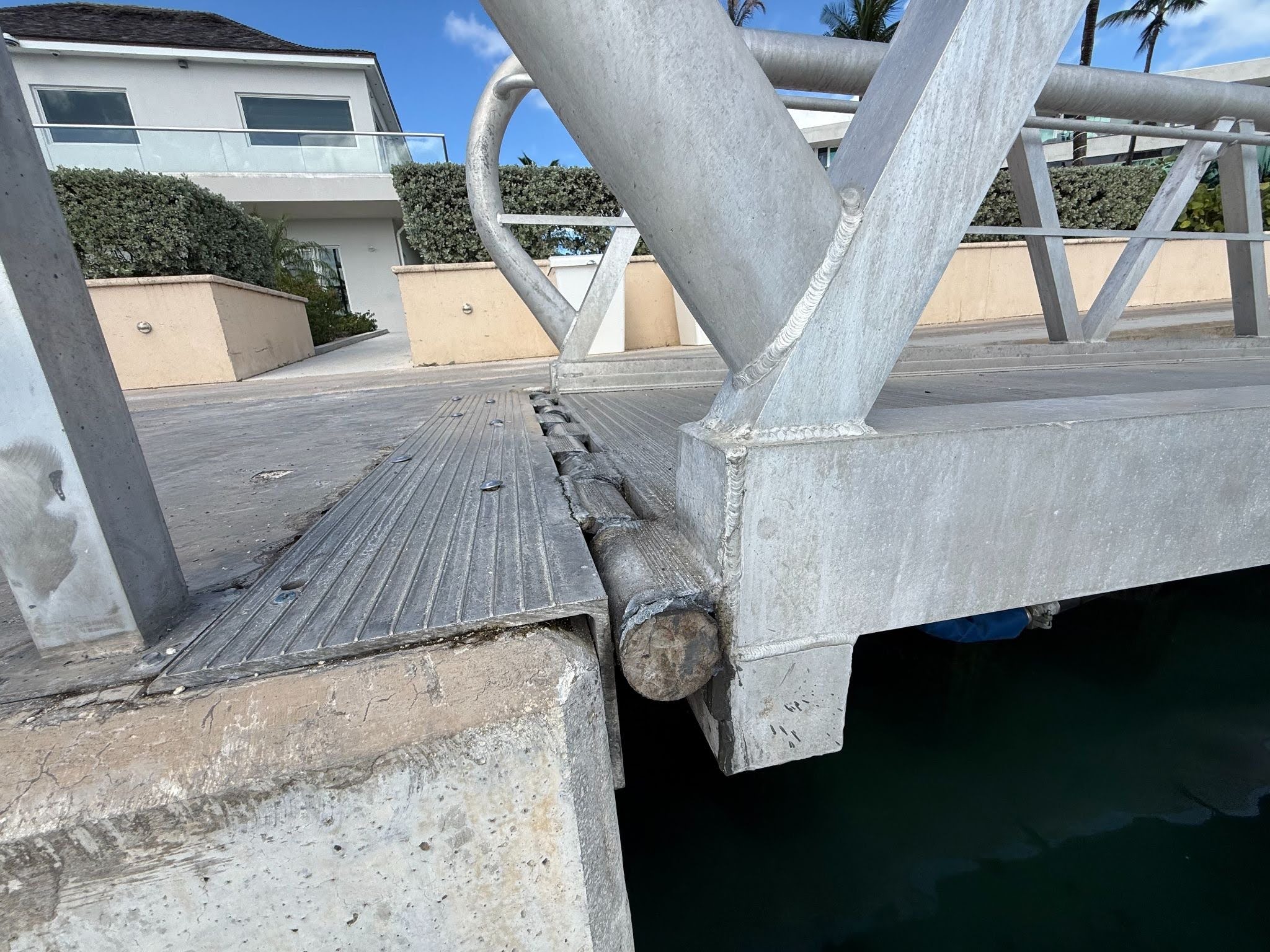

At the fixed end of a typical shore-to-float gangway, a hinged or pinned connection transfers loads to the supporting structure while allowing the gangway to rotate as its angle changes.

At the floating end, the gangway must generally accommodate both rotation and longitudinal travel. Depending on the gangway length, weight, operating range, loading and dock configuration, this can be achieved through several arrangements, including a roller-and-plate detail, a flexible connection system, or a roller-and-rail assembly incorporating engineered wear components such as UHMW polyethylene wheels or pads. Each arrangement accommodates movement and transfers structural reactions differently, so the connection system must be selected as part of the overall gangway and floating-dock design.

Transition plates bridge the changing interface between the gangway and the adjoining walking surface and may be required at one or both ends depending on the configuration. Their geometry, surface treatment and movement range should be coordinated with the gangway throughout its full operating range to minimize abrupt changes in level and maintain a safe walking surface.

For commercial installations, these connections should not be treated as secondary hardware. They are part of the gangway's structural load path and movement system and must be designed for the reactions, travel and repeated articulation expected over the service life of the structure.

Types of Gangway on a Commercial Waterfront

Nearly every commercial application falls into one of two families: shore-to-float gangways, which connect a fixed abutment or pier to a floating dock at a marina, resort, yacht club or public waterfront, and vessel-access gangways, which connect a quay, tower or platform to a ship's side at cargo terminals, ferry berths and passenger facilities. What has to move, how far, and under what load — those questions decide the design in both families.

Marine gangways to floating docks

The most common configuration on a marina or resort waterfront. These marine aluminum gangways connect the shore structure to aluminum floating docks and carry pedestrian traffic, service carts and dock equipment at a stated load capacity across a range that never stops moving.

Shore gangways for vessel access

Where the moving element is the ship rather than the dock, the geometry is harsher. Our aluminum shore gangways serve cargo ships, barges, bulk carriers, tankers and passenger vessels, with configurations that work at inclines up to 30° and stepped versions that operate between 30° and 55°.

Ferry and transit access

Continuous passenger flow and vessel impact change the load case entirely. Gangways at aluminum ferry landings are engineered for peak crowd loading, rapid turnaround and the accessibility requirements that come with public transit.

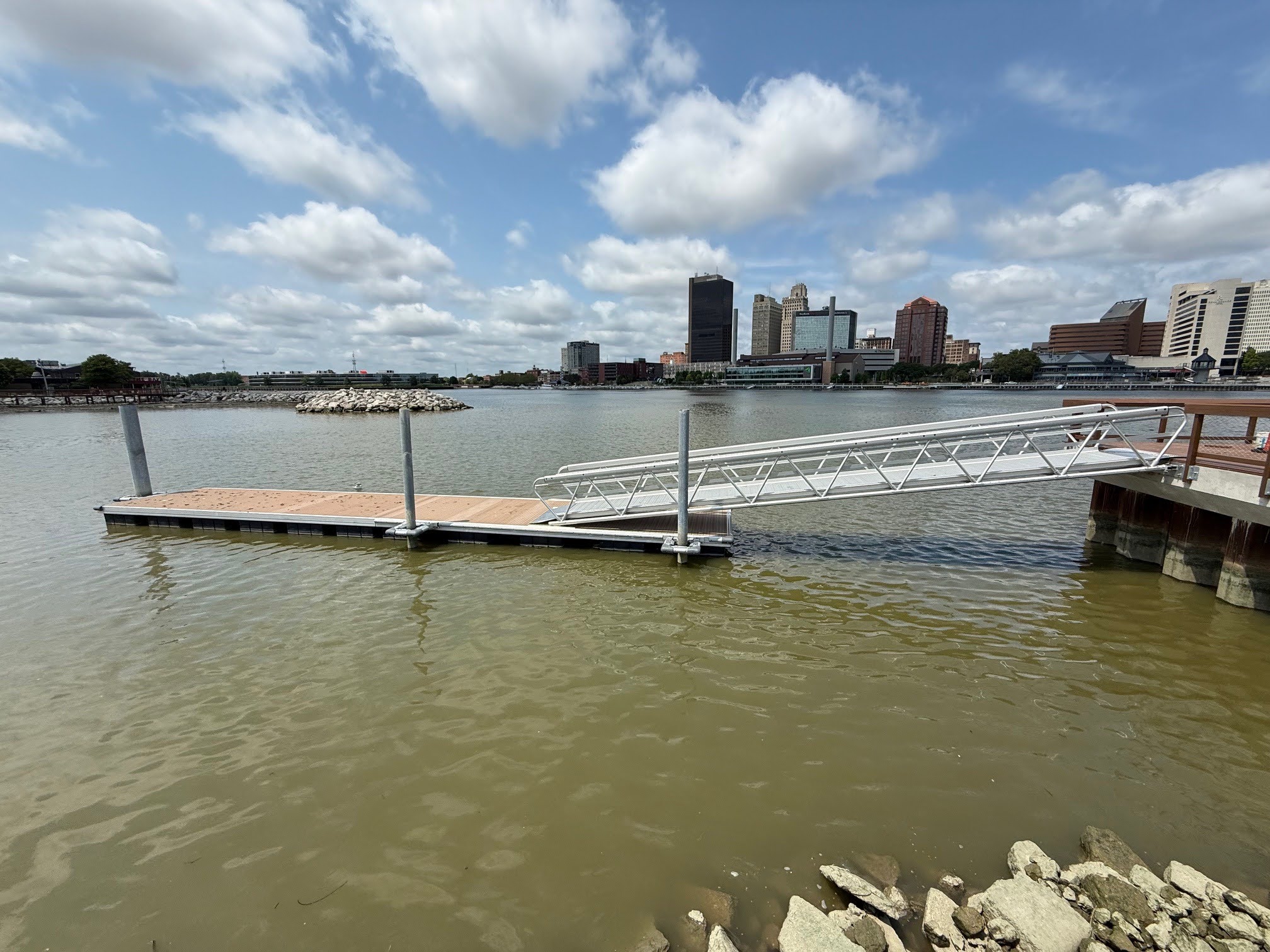

Gangway kits

Where a site is remote, or where a crew will assemble on location, aluminum gangway kits ship as weld-free components and bolt together on site. The engineering is the same. Only the delivery model changes.

ADA Compliance Is Mostly a Length Question

For facilities in the United States, gangway accessibility is governed by the 2010 ADA Standards. Ramps generally have to hold a running slope no steeper than 1:12 under section 405.2, but recreational boating facilities receive specific relief under section 1003.2.1.

Two exceptions do most of the work. Where the total length of a gangway or series of gangways on the accessible route is 80 ft minimum, the gangway is not required to comply with 405.2. Where a facility has fewer than 25 boat slips and that total length is 30 ft minimum, the same relief applies.

We engineer gangways to ADA accessibility requirements, with slope management, handrails and raised kick plates resolved at design stage rather than at inspection.

What a Gangway Is Made Of

Marine-grade aluminum is the working standard for engineered gangways, for structural reasons before aesthetic ones. It resists corrosion without coatings, carries a 30 to 50 year service life in salt water with minimal maintenance, and weighs about one third of what steel weighs, which matters twice over: the float carries less dead load, and the crew handling it needs less equipment. Our why aluminum page covers the material comparison in detail.

Decking is specified separately from the structure. Ipe hardwood carries a minimum 40-year lifespan, composite a minimum 25 years, and ribbed aluminum lasts as long as the frame it sits on.

The Details That Decide Service Life

A gangway fails at its details long before its main members are in question. The specification items that carry safety and service life:

• Guardrails. 42″ guardrails with 2″ (50 mm) midrails at mid-height, meeting U.S. and Canadian bridge codes.
• Handrails. 2″ (50 mm) hand clearance, with double handrails where traffic or accessibility calls for them.
• Anti-slip surfaces. Specified for the wettest and coldest condition the site sees, not the average one.
• The moving connection. Roller and rail assemblies for heavy duty and long travel, flexible connectors for lighter service.
• The warranty behind it. Our gangways carry a 15-year limited warranty against material failure, defects and corrosion.

What Drives the Cost of a Gangway

Gangway pricing follows the engineering, not a catalogue. Length and width set the material volume, and length is driven by the water level range and the accessibility target. Live load, decking choice, handrail and guardrail configuration, the connection assembly at each end, abutment work at the shore, and site logistics account for the remainder.

Because those inputs vary so much between sites, engineered gangways are quoted per project. Our guide to floating dock cost covers the same logic for the dock system a gangway serves.
